Building a home on the Illawarra Escarpment

The escarpment is not one thing

People say “escarpment block” as though it describes a kind of house. It describes a kind of ground, and the ground varies more than the houses do.

The Illawarra escarpment is part of Australia's Great Eastern Escarpment, and it is unusually close to the sea in the Wollongong area. It runs about 50 kilometres, from Royal National Park in the north to Budderoo National Park and the Barren Grounds Nature Reserve in the south, and it meets the coastal plain at around 300 metres at Bald Hill in Stanwell Tops and about 550 metres at the southern end. It rises from roughly 300 metres above sea level at Scarborough, past Sublime Point at 415 metres near Thirroul and Brokers Nose at 440 metres, over Mount Keira and Mount Kembla at 534 metres, to its highest ground in the south at Knights Hill (709 metres) and Mount Murray (768 metres).

The Illawarra Escarpment State Conservation Area protects 2,772 hectares of that escarpment between Stanwell Park and Dapto, in six separate sections: Stanwell Park, Austinmer–Bulli, Corrimal, Mount Keira, Mount Kembla and Wongawilli.

For a builder, the useful distinction is where your block sits in relation to that line. Wollongong's own Development Control Plan groups the escarpment into precincts, and its Cliff Coast Precinct runs from the vegetated ridgeline at Mountain Road, Thirroul, north to Clifton, covering Austinmer, Coledale, Wombarra, Scarborough and Clifton, with the Stanwell Precinct covering Coalcliff and Stanwell Park. Other precincts take in Mount Keira, Mount Kembla, Balgownie Valley, The Heights, Marshall Mount and Calderwood, Maddens Plain and the West Dapto Bowl. Those precincts are not decoration — they carry different expectations about vegetation, earthworks and views.

Land on and below the escarpment sits in a mix of zones: R1 General Residential, R2 Low Density Residential and R3 Medium Density Residential on the coastal plain and at the foot of the slope, environmental management and environmental living zones further up, and national park land inside the conservation area. The zone decides what is permissible before any of the engineering does, so it is the first thing I check.

What is under your feet

This is the part worth understanding, because every difficult decision on an escarpment build traces back to it. The Sydney Basin here was filled with swamp and river sediments during the Permian and Triassic, roughly 260 to 180 million years ago, then uplifted, tilted and eroded. The horizontal beds that make up the escarpment and plateau dip to the north-west. In sequence, from the top down:

• Hawkesbury Sandstone forms the plateau and the cliff line. It is massive, resistant, and penetrated by deep vertical cracks — joints. Jointing is a natural result of the uplift, but the NPWS plan of management notes it is exacerbated by subsidence caused by coalmining.
• The Narrabeen Group — softer sandstones, shales and claystones — forms the steep vegetated slopes beneath the cliffs, with narrow claystone benches where weaker rocks overlie resistant ones. Bald Hill Claystone is part of this group.
• The Illawarra Coal Measures sit further downslope: shale, soft sandstone, conglomerate and coal seams, up to about 150 metres thick. Volcanic sills of Berkeley Latite penetrate the sedimentary geology in places such as Farmborough Heights and Wongawilli.

Three consequences follow, and they are the reason escarpment sites behave the way they do. First, in the words of the plan of management, weathering of the shales undermines the sandstone, causing rock falls that generate the cliffs. Second, porous layers such as sandstone and coal seams provide a sustained release of groundwater for months following rain — so a slope that looked dry in February can be weeping in August. Third, the debris of all that collapse forms a thick mantle of talus, or colluvium, on the escarpment slopes, and that material is itself prone to mass movement, particularly during heavy rainfall. The soils derived from weathered shale, claystone and landslide colluvium are rated an extreme erosion hazard and prone to mass movement.

Add the rainfall — about 1,600 mm a year on the escarpment, which the NPWS says exacerbates the inherent instability — and you have the whole problem in one paragraph. Water gets in through jointed sandstone, runs down to a less permeable shale or claystone, travels along it, and emerges somewhere on your block as a seepage line. That is not a drainage nuisance. It is a structural fact.

Why the geology changes the build

Translated into decisions on a house, that geology shows up as:

• Where the house can sit. Not where the view is best — where the ground is proven. That is often a different spot, and the difference needs to be found before the design, not during it.
• How it is footed. Bearing into sound sandstone is one problem; building on colluvium, fill or a claystone bench is another. Site classification under AS 2870 Residential slabs and footings is what turns the ground conditions into a footing design, and on the escarpment the classification frequently lands at the engineered end.
• Where the water goes. Cut into a slope and you intercept groundwater. You then have to collect it, convey it and discharge it lawfully — permanently, not just during construction. Underdrainage behind retaining walls is normal here, not an extra.
• How much you cut and fill. Cut produces rock that has to be broken and removed; fill has to be placed, compacted and tested, or engineered around. Balancing the two on a falling site is one of the main cost levers, and it is decided by the house's position on the block.
• How the materials get there. Access changes the construction method, and the method changes the price. More on that below.

Landslip is the risk you cannot see

The escarpment has a well-documented history of landsliding. Published case histories in Australian Geomechanics include a landslide at Mount Keira and rockfall hazards above the Sublime Point Walking Track. Leventhal and Flentje (2012) describe the colluvium as widely associated with past and active contemporary landslide activity, and call that slope instability a significant hazard for urban development on and across the escarpment slopes. NPWS records that landslides and large rockfalls have occurred at a number of locations throughout the park, that geological instability has forced the closure of some lookouts and walking tracks, and that coal-wash emplacements from former mining are especially prone to landslip because they are unconsolidated and typically sit on steep slopes. At the Mount Keira Scout Camp and the northern end of the Mount Kembla Ring Management Trail, a geotechnical risk management occupancy plan was developed that includes evacuation during high-rainfall periods.

None of that means “do not build here”. It means the report is not a formality. Wollongong's DCP chapter on geotechnical assessment of slope instability adopts the Australian Geomechanics Society's Practice Note Guidelines for Landslide Risk Management 2007 (AGS 2007) as a reference document, along with the AGS guideline for landslide susceptibility, hazard and risk zoning. It defines slope instability as occurring predominantly as rockfall, landslide or debris flow on hillside land, particularly after prolonged or intense rainfall, and it sets the acceptable-risk bar explicitly: acceptable risk for loss of life is taken as one order of magnitude lower than the tolerable risk for the person most at risk, and acceptable risk for loss of property is taken as low or very low.

That is a meaningful standard, and it is why the quality of the geotechnical work matters more on the escarpment than almost anywhere else in the Illawarra. When I read a geotech report on an escarpment block, I want to see: what is actually under the site rather than what is assumed from a contour map; where any seepage emerges and what it does in a prolonged wet period; whether the site is on in-situ rock, colluvium or fill; the landslide susceptibility and hazard zoning; the recommended site classification under AS 2870; the cut, fill and batter recommendations; and the drainage strategy for both surface water and groundwater. If a report does not answer those, it is not finished.

What Wollongong Council requires

Escarpment development is not assessed under one rule. In the Wollongong Development Control Plan 2009, the chapters that come up on almost every escarpment job are:

The escarpment is also where a complying development certificate is least likely to be available — though not for the reason most people assume. Being bush fire prone does not, by itself, take a dual occupancy outside the Low Rise Housing Diversity Code; it adds standards about direct access to a public road, connection to mains electricity, reticulated water with a fire hydrant within 70 metres, and conformity with Planning for Bush Fire Protection. It is multi dwelling housing in the form of terraces that bush fire prone land rules out. What else takes land outside the code is the land itself: the Codes SEPP excludes battle-axe lots, unsewered land, lots that already carry a secondary dwelling, land identified as susceptible to landslide risk in an environmental planning instrument, and land identified as environmentally sensitive, a buffer area, a river front area or a protected area, subject to coastal hazard or coastal erosion hazard, a foreshore area, a heritage item or conservation area, or acid sulfate soils of class 1 or 2.

Several of those triggers are common on escarpment land, and they apply site by site rather than as a blanket exclusion — which is why most escarpment work goes through a development application with the consultant reports attached. That is slower and it costs more up front, and it is also why the reports are worth doing properly the first time.

Bushfire on the escarpment

Get the mechanism right, because it is widely misstated. Bush fire prone land is designated by the Commissioner of the NSW Rural Fire Service under section 10.3 of the Environmental Planning and Assessment Act 1979, and recorded on a certified bush fire prone land map. Those maps are prepared by the local council and certified by the Commissioner. Whether a particular property is affected is disclosed on the Section 10.7 Planning Certificate you get from the council — that is the document to read before you buy.

Wollongong's DCP chapter E16 sets out three vegetation categories and their buffers: Category 1 covers forests, woodlands, heathlands, pine plantations and forested wetlands with a 100 metre buffer; Category 2 covers rainforests and lower-risk vegetation parcels with a 30 metre buffer; Category 3 covers grasslands, freshwater wetlands and related communities with a 30 metre buffer. If either the mapped vegetation or the buffer intersects a property, the property is bush fire prone.

On the escarpment, that catches a lot of land. Where it applies, a Bush Fire Assessment Report prepared in accordance with Planning for Bush Fire Protection 2019 — the current edition — establishes the Bushfire Attack Level, and an asset protection zone and landscape plan follow from it. The six BAL levels are, in the RFS's own descriptions:

Construction in bush fire prone areas follows AS 3959-2018 Construction of Buildings in Bushfire-prone Areas. Your BAL is affected by the area, the vegetation, the distance from the vegetation to the home, and the slope — and slope is why escarpment blocks often rate higher than a suburban block with the same vegetation.

Treat the BAL as a budget item, not a compliance annoyance. Moving from BAL-19 to BAL-29 or BAL-40 changes glazing, seals, screens, decking materials and sometimes the external wall system. That is real money, and it is much cheaper to know it in month one than after the windows are ordered. In some cases the more economical answer is to shift the building envelope on the block to change the distance to vegetation — which is only possible if you know early.

Trees, clearing and 10/50

Escarpment blocks usually come with vegetation, and vegetation is protected several ways at once.

Wollongong's chapter E17 explains which trees and plants need to be protected and managed, and sets out the approval process. There are two routes: a Tree Permit, which is not suitable where the work forms part of a development proposal, or a development application. Breaching the council's Tree Management Policy is an offence under the Environmental Planning and Assessment Act 1979, and it can apply to trees on private or public land. Remnant vegetation on the escarpment will generally not be permitted to be removed under chapter B6, and where threatened ecological communities are present, chapter E18 brings in the Biodiversity Assessment Method, a Biodiversity Development Assessment Report or a test of significance, and the Biodiversity Offsets Scheme.

Four endangered ecological communities listed under the Biodiversity Conservation Act 2016 are recorded in the Illawarra Escarpment State Conservation Area: Southern Sydney Sheltered Forest on Transitional Sandstone Soils, Illawarra Subtropical Rainforest, Illawarra Lowlands Grassy Woodland, and Coastal Upland Swamp. The escarpment contains the most extensive area of rainforest in the Sydney Basin Bioregion and is one of only six concentrations of rainforest in NSW. That is not background interest — it is why vegetation questions on the escarpment are answered with reports rather than assumptions.

Then there is the 10/50 Vegetation Clearing entitlement. It lets an owner clear trees within 10 metres of a home, and underlying vegetation such as shrubs (but not trees) within 50 metres of a home, without seeking approval — measured from the external wall of a lawfully approved building containing habitable rooms. It does override a council Tree Preservation Order, and you are not required to notify the council if you clear in accordance with the code.

The exclusions matter more than the entitlement on this terrain. Limitations on clearing occur on slopes of more than 18 degrees, and you are responsible for determining the slope. Clearing is not allowed within 10 metres of a lake or river 2 metres or more wide between the highest opposite banks, and the tool flags land within 100 metres of the coastline or estuaries. Littoral rainforest, coastal wetlands, land reserved under the National Parks and Wildlife Act 1974, Aboriginal Places and scarred trees, heritage items, critically endangered plants, mapped critical habitat, certain critically endangered ecological communities, and agreements under the Biodiversity Conservation Act 2016 are also excluded. And clearing under the code is not an approval under the Commonwealth Environment Protection and Biodiversity Conservation Act 1999 — state law cannot override Commonwealth law. Check the 10/50 tool for the specific address before anyone reaches for a chainsaw.

Access, water and services

Access. Chapter B6 sets limits on private access roads and shared rights of carriageway serving up to three lots: a maximum length of 600 metres, a maximum gradient for a sealed road of 15 degrees and 10 degrees for an unsealed road, and a maximum cross fall of 10 degrees. Those numbers describe the reality of getting anything built up here. On a steep or narrow approach I am thinking about whether a concrete truck can reach the pour or whether it has to be pumped, how spoil leaves the site, where materials are stored when there is no flat ground, and whether a crane can be set up at all. Every one of those is a cost and a programme decision, and none of them is visible in a floor plan.

Stormwater. Chapter E14 sets the requirements, including on-site stormwater detention. Wollongong's guidance is specific: where site gradients allow, all stormwater should be conveyed to the street gutter system via sealed pipes, and charged stormwater lines are not permitted. Where the gradient does not allow it, the alternatives are an inter-allotment drainage easement with an overflow gully below the lowest floor level, or absorption disposal through a 5,000 litre rainwater tank supported by a report from a practising geotechnical engineer with local knowledge, with the trench base slope not exceeding 3%. Excavating the footpath or road reserve needs a council permit. On a falling block, “where does the water go” has to be answered on paper before it is answered on site.

Catchment. Parts of the escarpment fall within the Metropolitan Special Area managed by WaterNSW as part of the drinking water catchment. Where they do, chapter E22 requires a water cycle management study with the development application, and sediment and erosion control is assessed against Managing Urban Stormwater: Soils and Construction. A basic erosion and sediment control plan applies to disturbance under 1,000 m²; a full plan between 1,000 and 2,500 m² or within 50 metres of a watercourse; and a soil and water management plan above 2,500 m².

Utilities. Electricity across the Illawarra is distributed by Endeavour Energy, and Jemena Gas Networks distributes natural gas in Wollongong. What changes on the escarpment is not who supplies you but what it costs to get to you — long runs, poles on a slope, easements, and rock trenching.

Design moves that work on a slope

This is judgement rather than regulation, so treat it as such — but it is what I have learned from building on this ground.

• Follow the fall rather than fight it. A split-level home that steps down the slope needs less cut, less fill, less retaining and less spoil removal than a single plateau with a big cut into the hill behind it. It also usually gives better ceilings and better views from more rooms.
• Keep the footprint off the seepage line. Once you know where the groundwater emerges, the house should sit clear of it or be designed to deal with it permanently.
• Minimise the boundary interface. Every metre of cut near a boundary is a metre of retaining that may need engineering, fire-rating consideration and a neighbour's agreement.
• Design the construction sequence, not just the house. On a constrained site, where the first retaining wall goes, where the spoil sits and how the slab is poured are design questions. If they cannot be answered, the programme will answer them expensively.
• Choose materials for 1,600 mm of rain. Details that shed water and dry out quickly, and that tolerate being wet repeatedly, outlast details that rely on staying dry.
• Let the BAL inform the envelope early. Where the assessment is going to drive glazing and screen choices, resolve the aesthetic with it rather than against it.

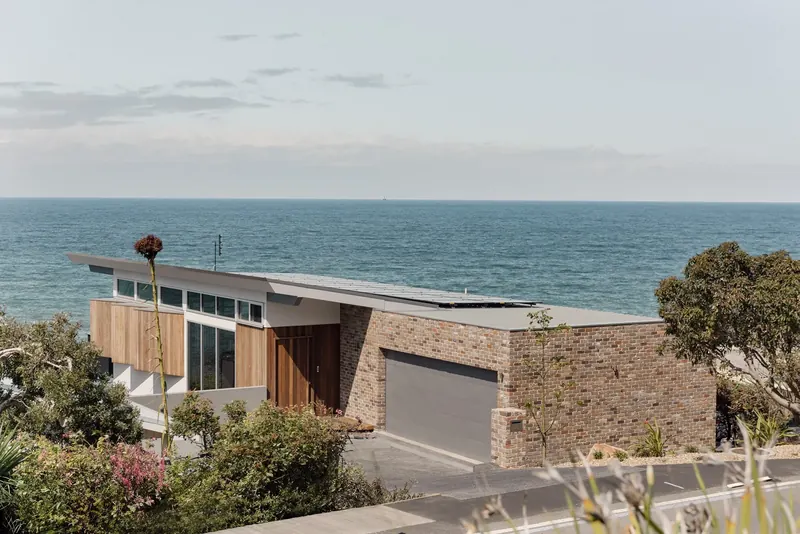

Wombarra Clifftops: what this looks like built

The site sat in an escarpment slip zone, with water running beneath it and a main road close to the boundary. The structural engineering and the stormwater strategy had to be resolved before the house could go where the owners wanted it — exactly the sequence I have described above, and the reason the build took 15 months.

The result is a split-level home set into the natural fall of the block: polished concrete, a recycled brick feature wall and timber stairs downstairs, polished timber floors and timber ceilings upstairs, arranged around the ocean and the escarpment. It won the Contract Homes $1.9 Million to $2 Million category at the Master Builders NSW 2026 Southern Regions Excellence in Building Awards, and the Illawarra Mercury wrote it up as a build where the block is the interesting part.

See the Wombarra Clifftops gallery and the owners' interview

What to check before you buy an escarpment block

If you are looking at land, this is the order I would work in, and it is the order I work in when I do a site assessment.

1. Section 10.7 Planning Certificate. Zone, applicable planning instruments, bush fire prone land, heritage, flooding and any other affecting interests. It is the cheapest document in the process and the one people skip.
2. The bush fire prone land map for the address, then a realistic view of what BAL that implies.
3. A contour survey and a walk of the site. Where the fall is, which way the water runs, and where the seepage shows after rain — go and look in a wet week if you can.
4. Vegetation. What is remnant, what is protected, and what can lawfully be cleared. Check the 10/50 tool for the address as well as the council's tree rules.
5. Access and easements. Legal access, rights of carriageway, gradient and length, and whether a truck and a pump can actually work there.
6. Services and drainage. Where the sewer main sits and whether the connection can fall to it; where stormwater can lawfully be discharged; the length and cost of power and water runs.
7. Mining history. If the land is in a declared mine subsidence district, check with Subsidence Advisory NSW what approval is needed and how it affects footing design.
8. A geotechnical investigation. Before design. On this ground it is the single highest-value document you can commission.

Requirements depend on the individual property, its location, the proposed development and the planning controls that apply to it. Two blocks 200 metres apart can have different zones, different BALs and different ground. That is why I do every site assessment myself — 45 minutes on the block looking at slope, frontage, access, zoning and water — and why I would rather tell you “don't build that here” in week one than discover it in month nine.

More on this site

Four escarpment builds in Wombarra, Austinmer and Coledale: what each site demanded, from the CKS Projects project records.

Sloping blocks: what drives the cost: the seven site factors behind the price, and where each shows up in a quote.

Sources

Checked on 28 September 2026. Where a figure could not be traced to a primary source it has been left out rather than estimated.

• NSW National Parks and Wildlife Service, Illawarra Escarpment State Conservation Area Plan of Management — extent, area, heights, geology, groundwater, colluvium, soils, landslides and coal-wash emplacements, threatened ecological communities.
• Wikipedia, Illawarra escarpment — heights along the escarpment, Knights Hill and Mount Murray, age of the scarp.
• Wollongong City Council, DCP 2009 Chapter B6, Development in the Illawarra Escarpment (in force 1 July 2023) — precincts, geotechnical report requirement, access road limits, remnant vegetation.
• Wollongong City Council, DCP 2009 chapter list — E12 Geotechnical Assessment of Slope Instability, E14 Stormwater Management, E16 Bushfire Management, E17 Tree and Vegetation Management, E18 Native Biodiversity Impact Assessment, E19 Earthworks, E22 Soil Erosion and Sedimentation.
• Wollongong City Council, Domestic stormwater drainage systems — sealed pipes to the street gutter where gradients allow, charged lines not permitted, easement and absorption alternatives.
• Wollongong City Council, Tree management rules — Tree Permit and DA pathways, offence provisions.
• NSW Rural Fire Service, Bush fire prone land — designation under section 10.3 of the EP&A Act, council-prepared and Commissioner-certified maps, Section 10.7 Planning Certificate.
• NSW Rural Fire Service, Bushfire Attack Levels — the six BAL categories and what determines them.
• NSW Rural Fire Service, Planning for Bush Fire Protection 2019 — the current assessment document referenced by Wollongong DCP E16.
• NSW Rural Fire Service, 10/50 Vegetation Clearing — entitlement, measurement, the Tree Preservation Order override, the slope and coastal exclusions, and the Commonwealth law limitation.
• Australian Geomechanics Society, Practice Note Guidelines for Landslide Risk Management 2007 — the guidelines adopted by Wollongong DCP E12.
• Hunter, Thompson and Volk, Landslide risk management in National Parks: some case histories, Australian Geomechanics Vol 46 No 2, June 2011 — Mount Keira landslide and Sublime Point rockfall.
• Leventhal and Flentje, Illustrative sections depicting landslide susceptibility of the Illawarra Escarpment, Australian Geomechanics Vol 47 No 1, 2012 — colluvium and landslide hazard for urban development.
• Wikipedia, Sydney sandstone, Bald Hill Claystone and Illawarra Coal Measures — rock unit descriptions.
• Endeavour Energy and Jemena Gas Networks — electricity and gas networks serving the Illawarra.
• Illawarra Mercury, Wombarra: Luxury clifftop home conquers challenging escarpment site, 27 August 2026.
• Master Builders Association of NSW, 2026 Southern Regions Excellence in Building Awards — Contract Homes $1.9 Million to $2 Million, Wombarra Clifftops.

This page is general information from a builder, not geotechnical, planning, legal or bushfire advice. Requirements depend on the individual property, its location, the proposed development and the applicable planning controls, all of which change. Confirm the current instrument with Wollongong City Council, the NSW Rural Fire Service or your own consultants before relying on it.
